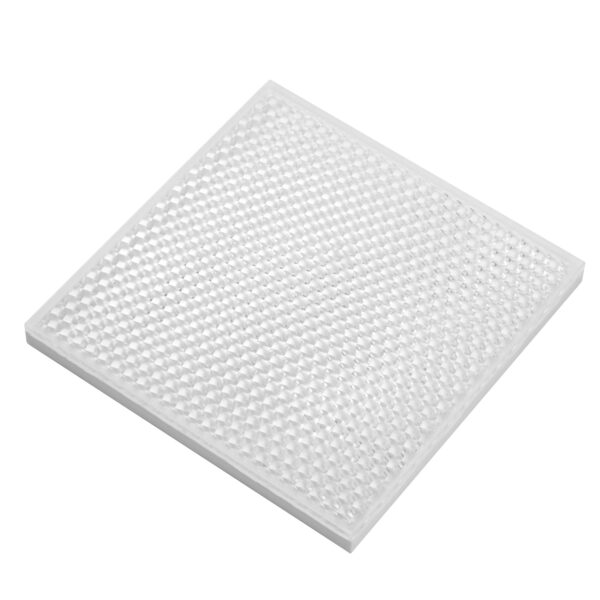

100×100 LF ZSB

Name: 100x100 LF ZSB - Ultra Reflex GmbH
SKU: 01092511

SKU: 01092511 Category: Reflectors for photoelectric sensor

The standard reflectors have highest reflection values and ranges. These reflectors are best suited for applications with standard sensors.

Additional information

Art	Reflectors for photoelectric sensor
Artikel	100×100 LF ZSB
Artikelnummer	1092511
Format (LxBxH)	99,35 x 99,35 x 8,5 mm
Reflexionsfläche (LxB)	95,8 x 96 mm
Befestigung	to be glued (without tape)
Beständigkeit	Standard
Schutzart	IP68
Einsatztemperatur	-20°C to 65°C
Oberfläche	Standard
Prismen Struktur	hexagonal
Prismen Schlüsselweite	Standard triple SW4
Polarisationsdrehnung	yes
Anwendung	Standard sensors
Werkstoff Reflektor	PMMA clear
Werkstoff Halterung	PMMA high impact white

Thank you for your interest in our product:
100×100 LF ZSB / Productnumber: 01092511

The following downloads are available:
Download PDF
Download STEP
Download DXF
